  Department of Chemical Engineering, NIT Raipur

Process Dynamics and Control Lab
[VI Semester, Third Year]
Course Description
Offered by Department     Credits     Status         Code
Chemical Engineering      0-0-2     Laboratory      CH106401CH
[Pre-requisites: None]
Course Objectives
1. To determine the time constant & dynamics of I and II order system
2. To determine the control valve coefficient of control valve
3. To identify the suitable parameters needed for PID controllers
Course Content


List of experiments:

1. Study of Control Valve – Valve Coefficient, Hysteresis, Inherent Characteristics, Installed Characteristics, Rangeability
2. Time Constant of First Order System – Temperature Measurement Devices – Glass Thermometer, Bimetallic Thermometer, RTD, Thermistor, Thermocouple
3. Dynamic Response of U-Tube Manometer – Mercury, Water
4. Dynamic Response of Interacting and Non-Interacting System
5. Study of Controller – P, PI, PD, PID
6. Study of Cascade Control Trainer (SCADA)
7. Study of DCS Trainer
8. Study of Flapper Nozzle System
9. Study of Non-linear Level Control
10. Study of I/P and P/I Converter

Course Materials

Required Text: TextBooks

1. D.R. Coughanowr and S.E. Leblanc, Process Systems Analysis and Control, McGraw Hill Education, 3rd Edition, 2017.
2. G. Stephanopoulos, Chemical Process Control, Pearson Education India,1stEdition, 2015.
Name of the equipment Photograph

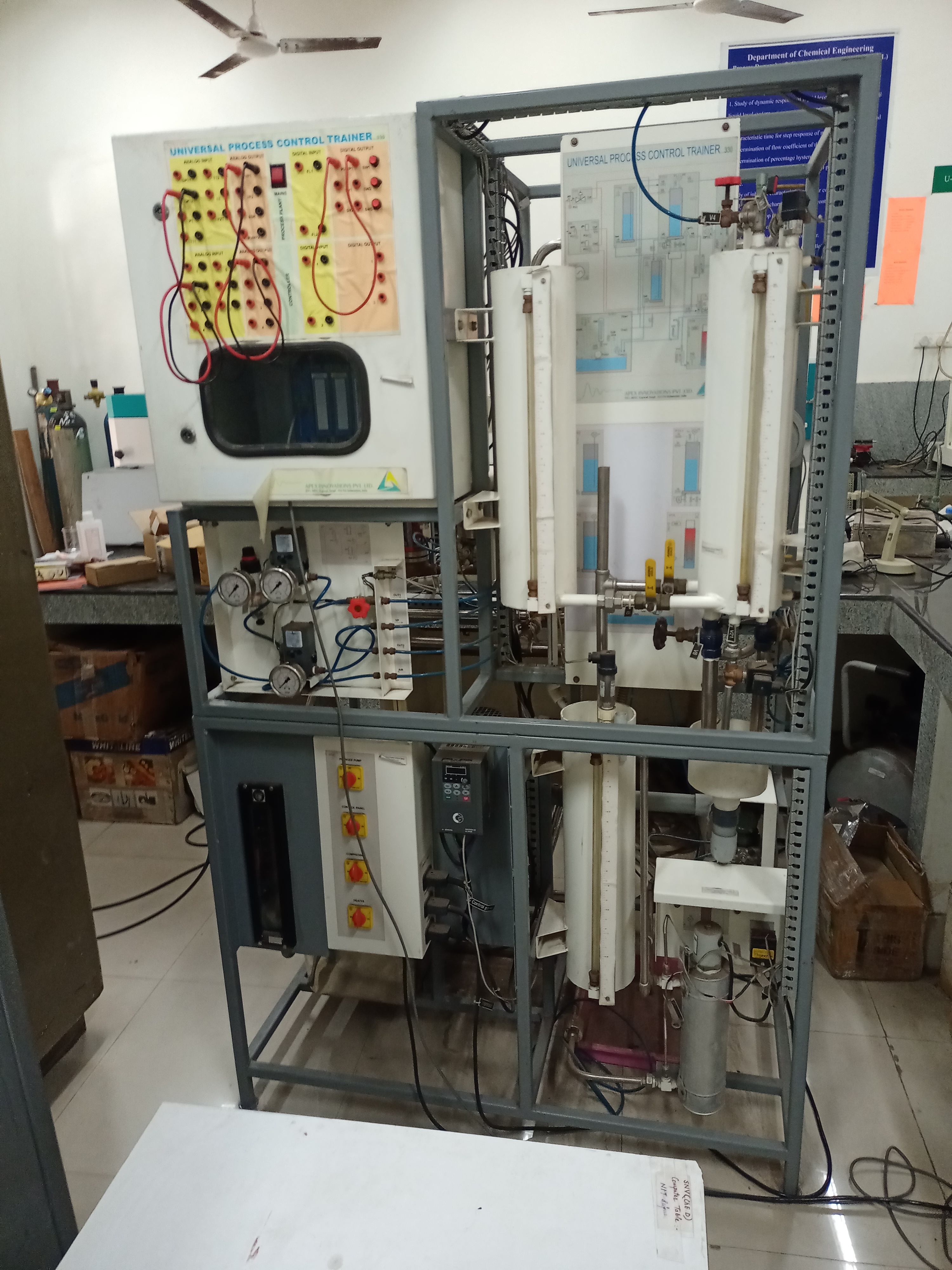

Universal Process Control trainer
I/P and P/I Converter

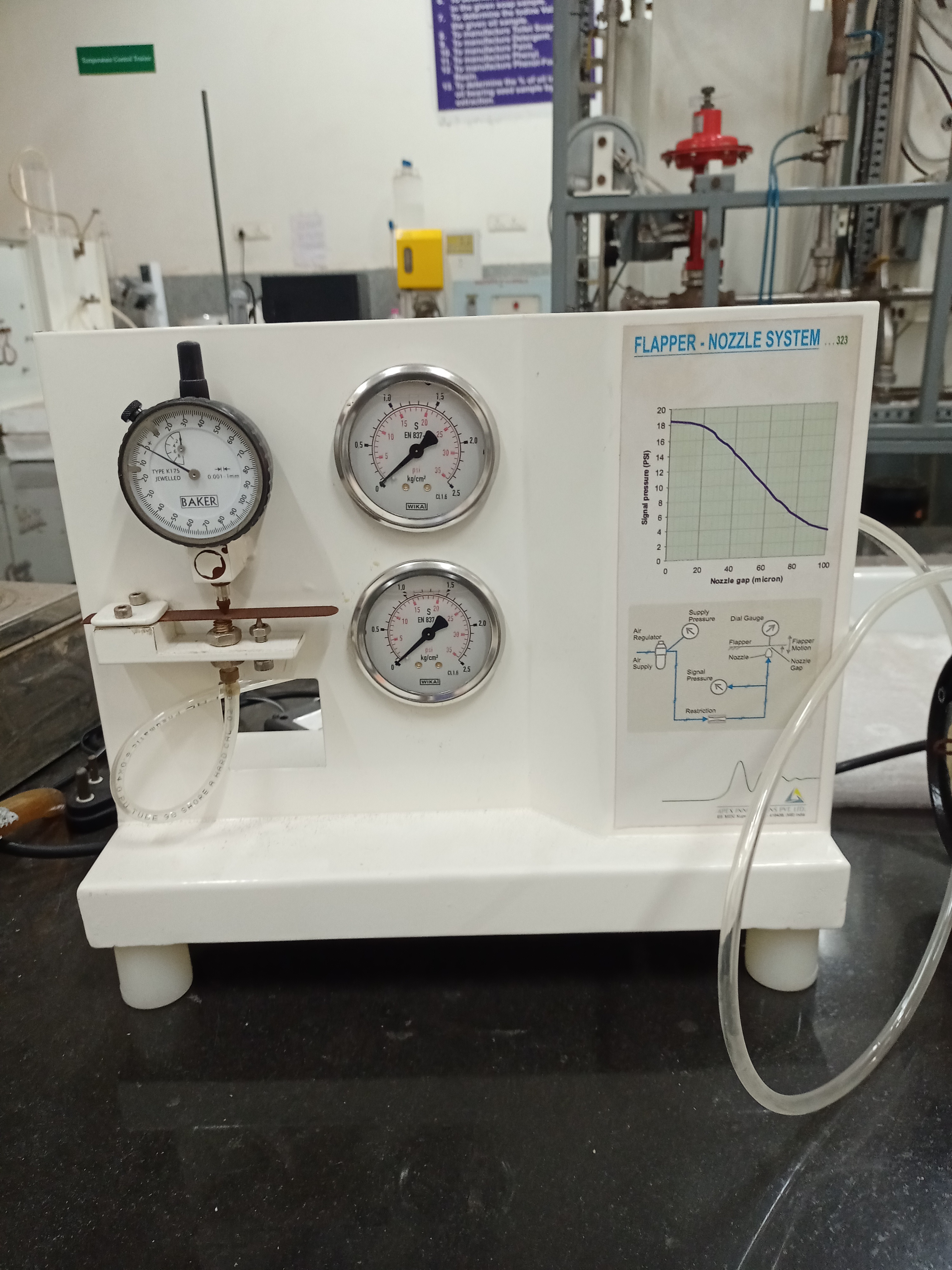

Flapper nozzle system

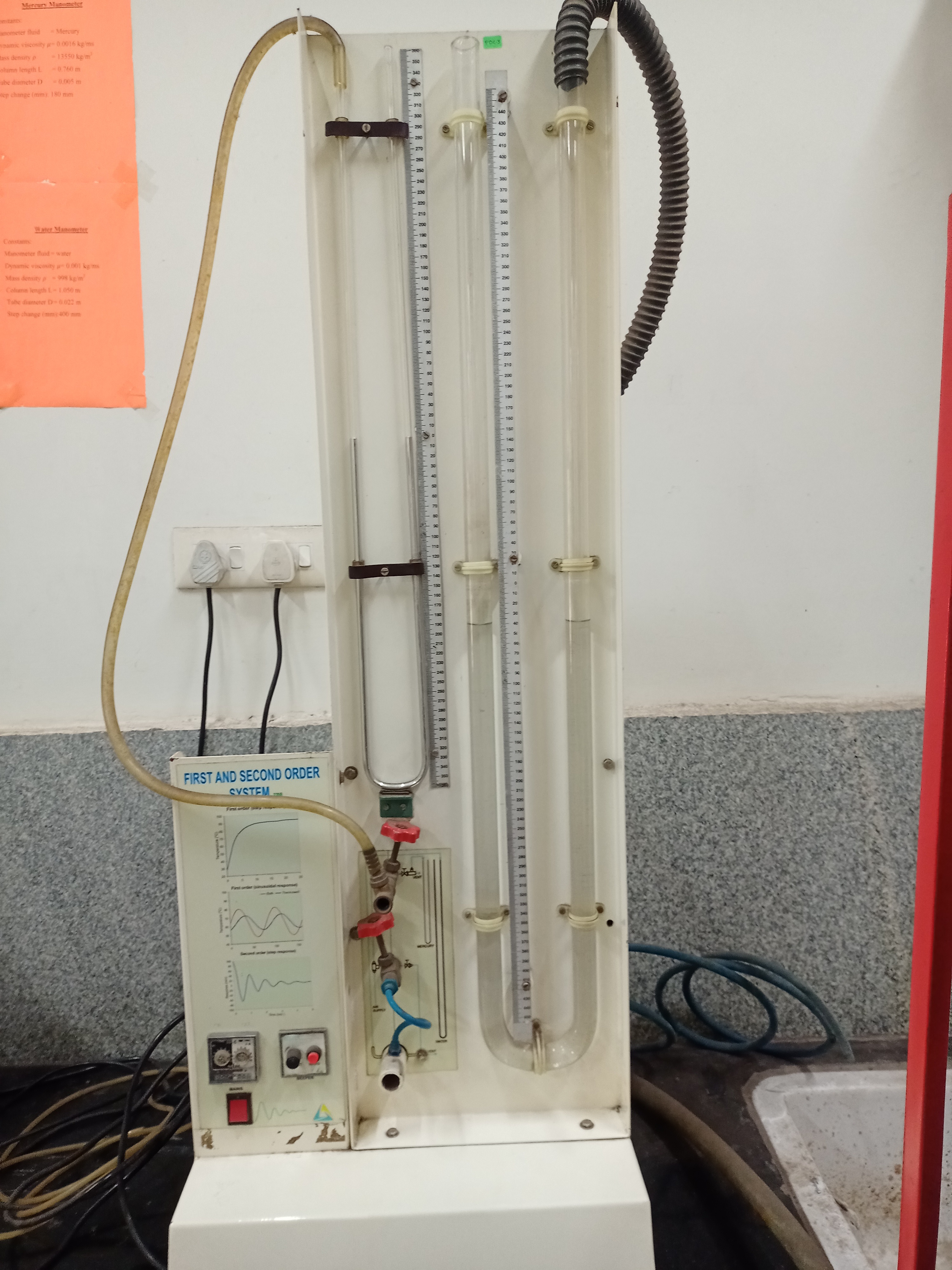

U- Tube manometer
Temperature measurement device

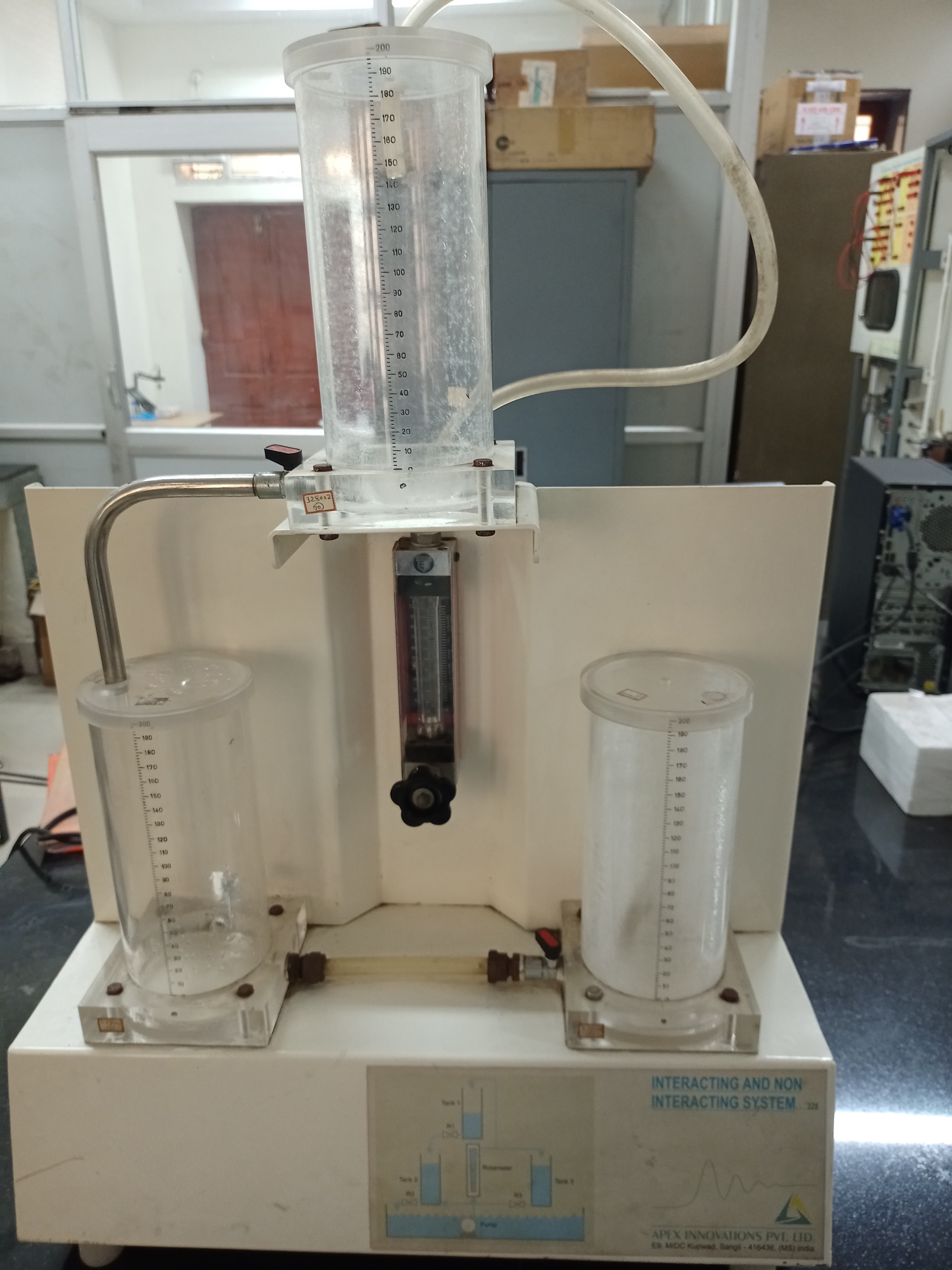

Interacting and Non-Interacting system
Control valve
